Implementation of the WilsonFlow App class. More...

#include <wilsonflow.h>

Inheritance diagram for WilsonFlow:

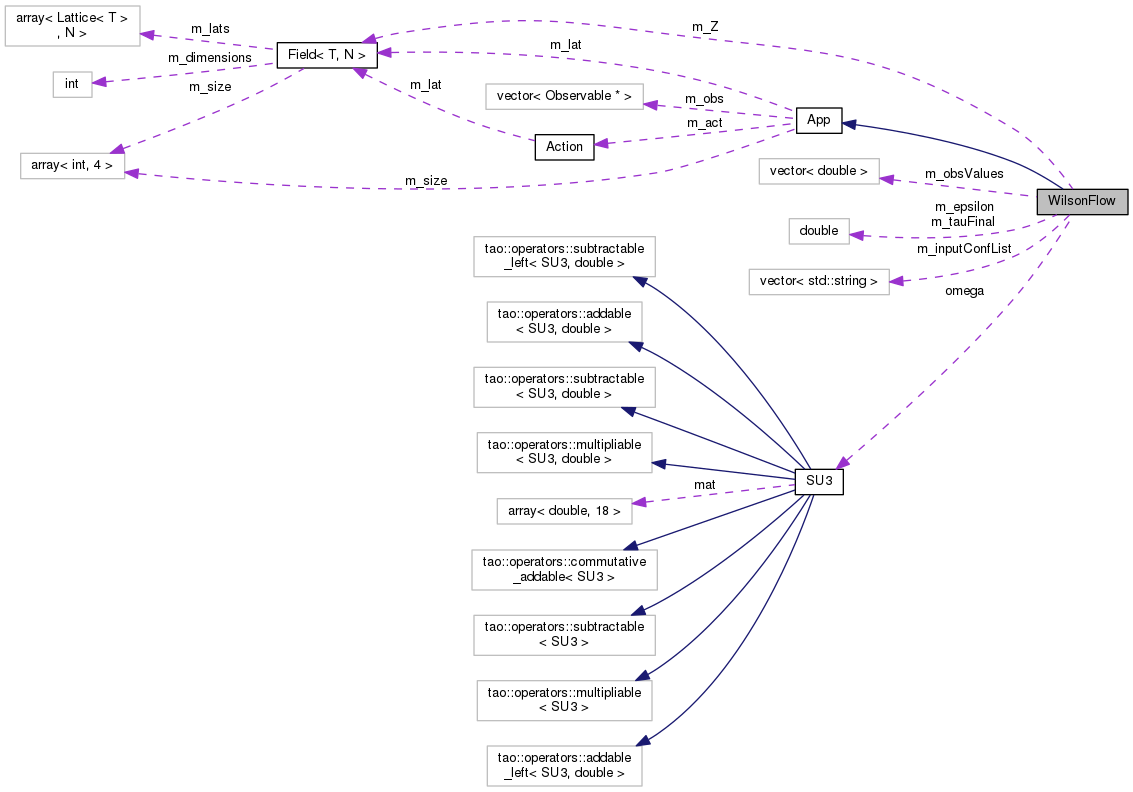

Collaboration diagram for WilsonFlow:

[legend]

Public Member Functions
	WilsonFlow (double tauFinal, double epsilon)
	constructor of the class More...

void	flowConfigurations ()
	applies the gradient flow to all the configurations given as input

void	setAction (Action *action)

void	addObservable (Observable *observable)

std::array< int, 4 > &	getSize ()

std::vector< double > &	getObsValues ()

std::vector< Observable * > &	getObs ()

void	createLattice (std::array< int, 4 > latticeSize)
	creates the GluonField object and the temporary lattice for the action derivative.

void	execute ()
	Executes the App. First initializes the system then applies the gradient flow to the configurations.

void	initialize ()
	runs the initializers of the subclasses.

Public Member Functions inherited from App
void	setAction (Action *action)
	Initializes the Action object pointer given an instance of it. More...

void	addObservable (Observable *observable)
	Adds a Observable class pointer to the vector of observables of the App. More...

Private Member Functions
void	computeObservables ()
	computes all observables in the Observable vector

void	flowStep ()
	applies one step of the integration scheme, described in paper

void	applyWilsonFlow (int confNum)
	applies the gradient flow to one configuration More...

Private Attributes
GluonField *	m_Z = nullptr

std::vector< double >	m_obsValues

std::vector< std::string >	m_inputConfList

SU3	omega

double	m_epsilon

double	m_tauFinal

Additional Inherited Members
Protected Attributes inherited from App
Action *	m_act = nullptr
	Pointer to the Action instance.

GluonField *	m_lat = nullptr
	Pointer to the GluonField instance.

std::array< int, 4 >	m_size
	Size of the sublattice.

std::vector< Observable * >	m_obs
	Vector of pointers to Observable instances.

Detailed Description

Implementation of the WilsonFlow App class.

Author: Giovanni Pederiva

Version: 1.0

Date: 2017-2018

Copyright: MIT License.

The WilsonFlow class implements Gradiend Flow method as suggested by M.Lüscher in the article https://arxiv.org/abs/1006.4518 The integration scheme is a third order Runge-Kutta method for Lie algebras, so called Runge-Kutta Munthe-Kaas RK-MK method.

Definition at line 53 of file wilsonflow.h.

Constructor & Destructor Documentation

WilsonFlow::WilsonFlow	(	double	tauFinal,
		double	epsilon
	)

constructor of the class

Parameters

tauFinal	the final flow time to be reached by the integration
epsilon	the integration step size

Definition at line 64 of file wilsonflow.cpp.

Member Function Documentation

void WilsonFlow::applyWilsonFlow ( int confNum )

private

applies the gradient flow to one configuration

Parameters

confNum the numerical label of the configuration to flow

Definition at line 115 of file wilsonflow.cpp.
